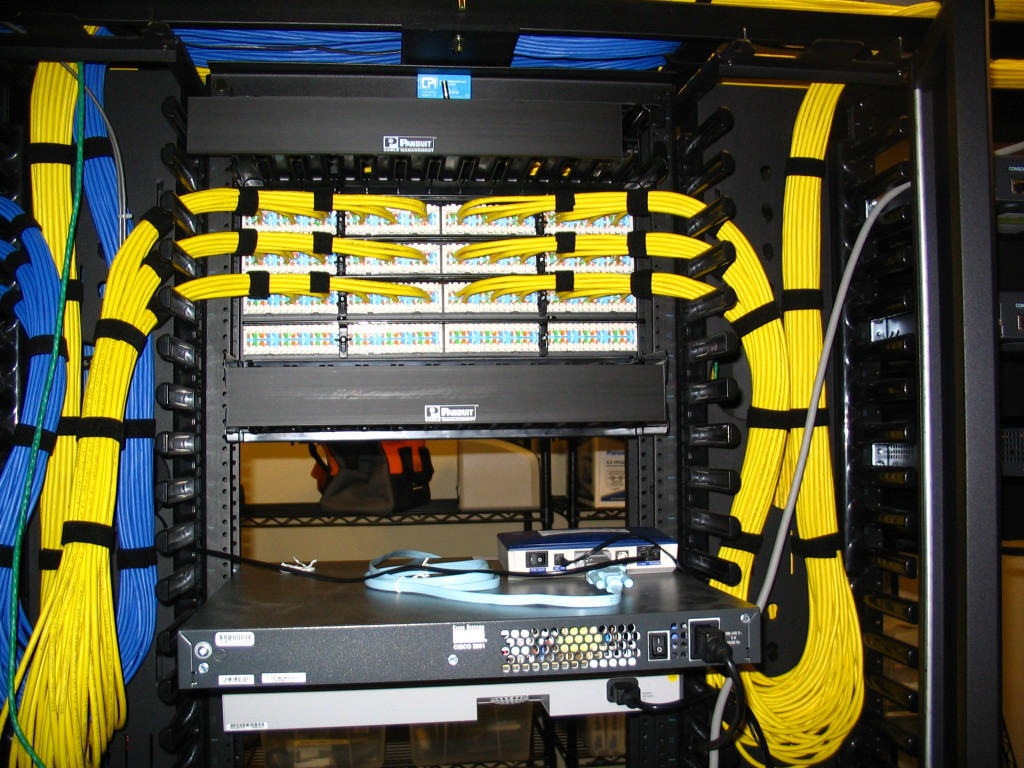

Structured Cabling (SC)

A structured cabling system is a complete system of cabling and associated hardware, which provides a comprehensive telecommunications infrastructure. This infrastructure serves a wide range of uses, such as to provide telephone service or transmit data through a computer network. It should not be device dependent.

The structured cabling system begins at the point where the service provider (SP) terminates. This point is the point of demarcation (demarc) or Network Interface Device (NID). For example, in a telephone system installation, the SP furnishes one or more service lines (per customer requirements). The SP connects the service lines at the point of demarcation.

Every structured cabling system is unique. This is due to variations in:

• The architectural structure of the building, which houses the cabling installation
• The cable and connection products
• The function of the cabling installation
• The types of equipment the cabling installation will support -- present and future
• The configuration of an already installed system (upgrades and retrofits)
• Customer requirements
• Manufacturer warranties

The methods SBT use to complete and maintain cabling installations are relatively standard. The standardization of these installations is necessary because of the need to ensure acceptable system performance from increasingly complex arrangements..

The U.S. cabling industry accepts the American National Standards Institute (ANSI), in conjunction with TIA/EIA, as the responsible organization for providing and maintaining standards and practices within the profession.These help to ensure a proper cabling installation.

The benefits of these standards include:

• Consistency of design and installation
• Conformance to physical and transmission line requirements
• A basis for examining a proposed system expansion and other changes
• Uniform documentation

The industry standard term for a network installation that serves a relatively small area (such as a structured cabling installation serving a building) is a local area network (LAN). There are also metropolitan area networks (MANs) and wide area networks (WANs).

Structured cabling installations typically include: entrance facilities; vertical and horizontal backbone pathways; vertical and horizontal backbone cables; horizontal pathways; horizontal cables; work area outlets; equipment rooms; telecommunications closets; cross-connect facilities; multi-user telecommunications outlet assemblies (MUTOA); transition points; and consolidation points.
